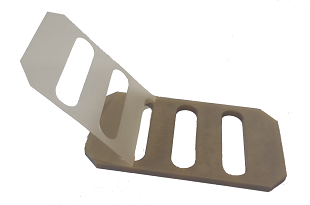

PEEKPEEL® is a laminated composite material designed by LAMECO. This composite material, the PolyEtherEtherKetone, takes the form of an uncharged polymer-based semi-crystalline film.
It offers a large number of outstanding properties, the main one being its high thermal resistance.
Benefits
Thicknesses & Weights
Letter - Inch A4 - Metric
Benefits of PEEKPEEL® laminated shims
Lightness
An appropriate response to a need for lighter materials (for increased autonomy, payload, etc.). PEEKPEEL® is, with INTERCOMPOSITE®, DUOPEEL®, X.FIBER®, X.FIBER HIGH-DENSITY® and COBRA.X one of the lightest of all our peel-off materials.
| Material | Specific Weight | Weight-saving |
|---|---|---|
| PEEKPEEL® | 1,3 | - |
| Aluminium | 2,8 | 2,15 X |
Endurance
PEEKPEEL® boasts a high thermal resistance. The mechanical properties of this product are not affected by temperature rise. It can thus be exposed without damage to temperatures of more than 482 °F/250 °C.
Adaptation on curved shapes
PEEKPEEL® adapts immediately to most curves without loss of accuracy. And, what’s more, on the actual assembly site.
Quick and Easy to use
PEEKPEEL® peels off "using your fi nger", no need for tools.
Safe to use
PEEKPEEL® Laminated Shims can be handled without risk of cutting yourself.
Anti-Fretting
PEEKPEEL® provides a total barrier to the galvanic coupling caused by contact of different metal alloys. It thus requires no surface treatment.
Smart and Economical
Once peeled, the sheets remain fl at and show no signs of deformation. They can thus be re-used and can serve as single-unit shimming parts.
Thicknesses & Weights available for PEEKPEEL® laminated shims
| SPEC. | Specific Weight | Thicknesses of laminations in inches / mm Standard |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| .0005 / 0,012 | .0007 / 0,019 | .0009 / 0,023 | .001 / 0,025 | .002 / 0,05 | .003 / 0,075 | .004 / 0,1 | .008 / 0,2 | ||
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 11 | ||
| LS22 | 1,3 | √ | √ | √ | √ | √ | √ | √ | √ |
For more information:
PEEKPEEL®: Trademark Registered.
