Laminated Shims: Available Materials, Weights and Lamination Thicknesses

LAMÉCO high-tech shims come in a wide choice of laminated materials:
Aluminum brass BCRW Fabric Carbon Fabric Glass Fabric High-performance Glass Fabric PEEK PETG Polyester Polyimide Stainless Steel Steel Titanium

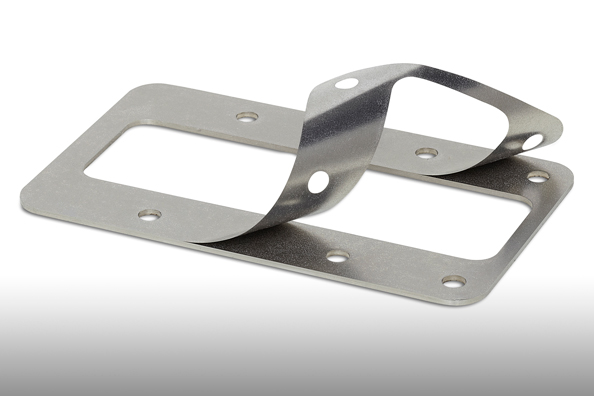

Noise abatement materials Easily peelable metals

Letter - Inch A4 - Metric

Standard / Materials						Standard	Specific weight	Thicknesses of laminations in mm / inches Standard
STD	AISI SAE	UNS	EN	BS	ISO	Standard	Specific weight	0,005 .0002	0,01 .0004	0,012 .0005	0,019 .0007	0,023 .0009	0,025 .001	0,05 .002	0,075 .003	0,1 .004	0,11 .0043	0,2 .008
Aluminum								1	2	3	4	5	6	7	8	9	10	11
LS1	1200	A91200	1200	1200	Al99,0	EN 573-3, EN 546-2, AMS-DTL-22499/1, LN29557-3	2.8							√	√
LS2	5052	A95052	5052	5052	AlMg2,5		2.8							√	√
LS18	1050	A91050	1050	1050A	Al99,5		2.8							√		√		√
LS19	1100	A91100	1100	1100	Al99,0Cu		2.71							√	√
brass								1	2	3	4	5	6	7	8	9	10	11
LS3		C27200, C27700	CuZn37	CZ108	CuZn37	AMS-DTL-22499/2, LN29557-2	8.5						√	√	√	√
Stainless Steel								1	2	3	4	5	6	7	8	9	10	11
LS4	302	S30200	1.4300, 1.4310	304S31		EN 10088-1, EN 10088-2, AMS-DTL-22499/3, LN29557-1	8.2							√	√	√
LS5	304	S30400	1.4301 1.4350	304S15 304S16			8.2		√				√	√	√	√
LS6	304L	S30403	1.4306	304S11			8.2							√	√	√
LS7	316	S31600	1.4401 1.4036	316S16 316S33			8.2							√	√
LS8	316L	S31603	1.4404 1.4435	316S12 316S13			8.2							√	√	√
Steel								1	2	3	4	5	6	7	8	9	10	11
LS9	1010	G10100	1.1121	040A10	1010	EN 10084, AMS-DTL-22499/4, SAE AMS 6387	7.85						√	√	√	√
Titanium								1	2	3	4	5	6	7	8	9	10	11
LS10	Ti Gr1	R50250	3.7025	2TA1	5832-2	AMS-DTL-22499/5, ASTM B 265	4.5						√	√	√	√
LS11	Ti Gr2	R50400	3.7035	TA 2	5832-2	AMS-DTL-22499/5, ASTM B 265	4.5							√	√	√
INTERCOMPOSITE®								1	2	3	4	5	6	7	8	9	10	11
LS12	Polymer / epoxy / polyester					ISO 15988	1.395			√	√	√	√	√	√	√		√
DUOPEEL®								1	2	3	4	5	6	7	8	9	10	11
LS13	Metalized polyester						1.395			√	√	√		√
X.FIBER®								1	2	3	4	5	6	7	8	9	10	11
LS15**	Carbon fabric						1.05										√
LS16	Glass fabric						1.35, 1.37, 1.39							√	√	√
COBRA.X®								1	2	3	4	5	6	7	8	9	10	11
LS17	BCRW fabric						1	√
PIMYX®								1	2	3	4	5	6	7	8	9	10	11
LS20	Polyimide Plastic					AMS-DTL-22499/6	1.42								√
X.FIBER HIGH-DENSITY®								1	2	3	4	5	6	7	8	9	10	11
LS21	High-performance glass fabric						1.35									√
PEEKPEEL®								1	2	3	4	5	6	7	8	9	10	11
LS22	PolyEtherEtherKetone						1.3			√	√	√	√	√	√	√		√
brass in INSTANT-PEEL®								1	2	3	4	5	6	7	8	9	10	11
IPLS3		C27200, C27700	CuZn37	CZ108	CuZn37		8.5							√	√	√
Stainless Steel in INSTANT-PEEL®								1	2	3	4	5	6	7	8	9	10	11
IPLS4	302	S30200	1.4300, 1.4310	304S31			8.2							√	√	√
IPLS5	304	S30400	1.4301 1.4350	304S15 304S16			8.2							√	√	√
IPLS6	304L	S30403	1.4306	304S11			8.2							√	√	√
IPLS7	316	S31600	1.4401 1.4036	316S16 316S33			8.2							√	√
IPLS8	316L	S31603	1.4404 1.4435	316S12 316S13			8.2							√	√	√
Steel in INSTANT-PEEL®								1	2	3	4	5	6	7	8	9	10	11
IPLS9	1010	G10100	1.1121	040A10	1010		8.2							√	√	√
Titanium in INSTANT-PEEL®								1	2	3	4	5	6	7	8	9	10	11
IPLS10	Ti Gr1	R50250	3.7025	2TA1	5832-2		4.5							√	√	√
IPLS11	Ti Gr2	R50400	3.7035	TA 2	5832-2		4.5							√	√	√
Stainless Steel in SILENTLINE®								1	2	3	4	5	6	7	8	9	10	11
SLS4	302	S30200	1.4300, 1.4310	304S31			8.2							√	√	√
SLS5	304	S30400	1.4301 1.4350	304S15 304S16			8.2		√				√	√	√	√
SLS6	304L	S30403	1.4306	304S11			8.2							√	√	√
SLS7	316	S31600	1.4401 1.4036	316S16 316S33			8.2							√	√
SLS8	316L	S31603	1.4404 1.4435	316S12 316S13			8.2							√	√	√
Steel in SILENTLINE®								1	2	3	4	5	6	7	8	9	10	11
SLS9	1010	G10100	1.1121	040A10	1010		8.2						√	√	√	√

If you do not know which laminated material you should choose visit our F.A.Q. page.
