Nonplannar Laminated Shims

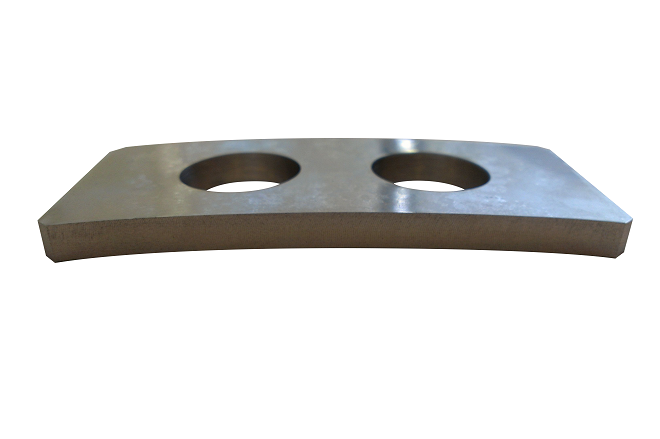

LAMÉCO can manufacture angled, bent, folded, conic (3D-PEEL®), tapered and curved (CURVPEEL®) laminated shims without any delamination.

They are all exclusive innovative processes of LAMÉCO. They provide top-quality solutions for laminated shims with nonplannar shapes, where the required shapes are incorporated into the shims during production.

You will find here below further information about our Curved Laminated Shims: CURVPEEL®.
Benefits Thicknesses & Weights

Letter - Inch A4 - Metric

Benefits of CURVPEEL® Laminated Shims

Optimal Ergonomics

The process is applied to shims intended for use on cylindrical couplings: these shims will then create a perfect ﬁt for the curved conﬁguration sets that are speciﬁc to certain assemblies. Cowlings, wind-turbine housings, fuselages, body-work, transmission shaft guides, etc. are examples of this use.
With the CURVPEEL® process, many different types of parts can be positioned and adjusted on curved bodies without any extra ﬁtting being required. Probes, antennae, rear-view mirrors, motors, stabilizers, pump bodies, reduction gear bodies, etc. are all possible examples.

Very High Precision

With the CURVPEEL® manufacturing process, highly accurate curved shims can be obtained with one or more constant radii.

A Gain In Time And A Financial Benefit

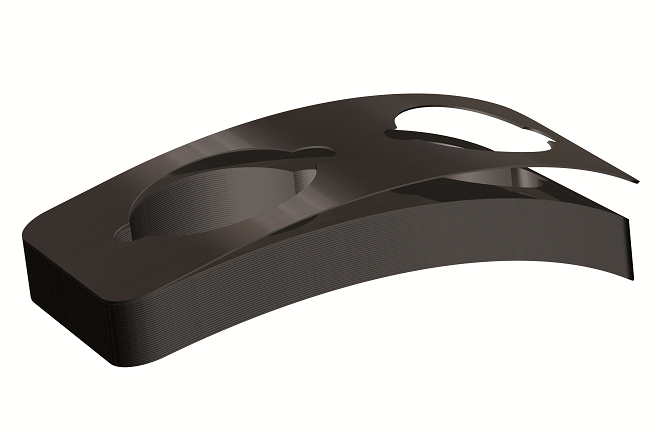

The shim no longer needs to be shaped before being assembled: It is delivered ready-to-use. This advantage is all the more appreciable where thick metallic laminated shims are required, as they cannot be curved manually or even with special tooling just before they are assembled.Furthermore, the CURVPEEL® process avoids any risk of delaminating and/or breaking laminations that can be found when shims are shaped at the last moment
This results in avoiding running the risk of considerable losses of time and a reject ratio that may often prove to be prohibitive.

LAMÉCO’S Specialty: Impeccable Quality

Our laminated shims are composed of foils glued across the entire face and not just at the edge.
In addition, due to our exclusive production processes they are perfectly parallel and totally free of any burrs.

Thicknesses & Specific Weights available for CURVPEEL® Peelable Shims

Standard / Materials						Specific weight	Thicknesses of laminations in mm / inches Standard
STANDARD	AISI SAE	UNS	EN	BS	ISO	Specific weight	0,01 .0004	0,012 .0005	0,019 .0007	0,023 .0009	0,025 .001	0,05 .002	0,075 .003	0,1 .004	0,11 .0043	0,2 .008
Aluminum							2	3	4	5	6	7	8	9	10	11
CPLS1	1200	A91200	1200	1200	Al99,0	2.8						√	√
CPLS2	5052	A95052	5052	5052	AlMg2,5	2.8						√	√
CPLS18	1050	A91050	1050	1050A	Al99,5	2.8						√		√		√
CPLS19	1100	A91100	1100	1100A	Al99,0Cu	2.71						√	√
brass							2	3	4	5	6	7	8	9	10	11
CPLS3		C27200, C27700	CuZn37	CZ108	CuZn37	8.5					√	√	√	√
Stainless Steel							2	3	4	5	6	7	8	9	10	11
CPLS4	302	S30200	1.4300, 1.4310	304S31		8.2						√	√	√
CPLS5	304	S30400	1.4301 1.4350	304S15 304S16		8.2	√				√	√	√	√
CPLS6	304L	S30403	1.4306	304S11		8.2						√	√	√
CPLS7	316	S31600	1.4401 1.4036	316S16 316S33		8.2						√	√
CPLS8	316L	S31603	1.4404 1.4435	316S12 316S13		8.2						√	√	√
Steel							2	3	4	5	6	7	8	9	10	11
CPLS9	1010	G10100	1.1121	040A10	1010	7.85					√	√	√	√
Titanium							2	3	4	5	6	7	8	9	10	11
CPLS10	Ti Gr1	R50250	3.7025	2TA1	5832-2	4.5					√	√	√	√
CPLS11	Ti Gr2	R50400	3.7035	TA 2	5832-2	4.5						√	√	√
INTERCOMPOSITE®							2	3	4	5	6	7	8	9	10	11
CPLS12	Polymer / epoxy / polyester					1.395		√	√	√	√	√	√	√		√
DUOPEEL®							2	3	4	5	6	7	8	9	10	11
CPLS13*	Metalized polyester					1.395		√	√	√		√
X.FIBER®							2	3	4	5	6	7	8	9	10	11
CPLS15*	Carbon fabric					1.05									√
CPLS16	PLUS glass fabric					1.35, 1.37, 1.39						√	√	√

* CPLS14 has been superseded.

For more information:

CURVPEEL®: Trademark Registered, France: FR 1 355 565 B1, Europe: Patent Pending, Canada: Patent Pending, US: Patent Pending.
